Site Model for Susan G. Komen for the Cure 2011

Susan G. Komen for the Cure® Honored as Most Valued Non-Profit Brand, Top Ranked for Trust, Charity People Are Most Likely to Donate To

PROJECT ID
Susan G. Komen Race for the Cure

PROJECT SCHEDULE
July to August 2011

PURPOSE

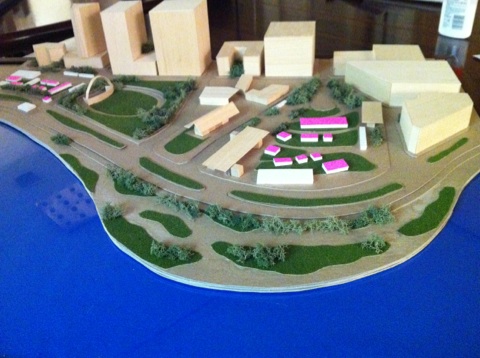

The site model is to represent the layout and configuration of existing site, sponsor tents, portable furniture, trailers and other components for the Race on January 29, 2012.

DESTINATION

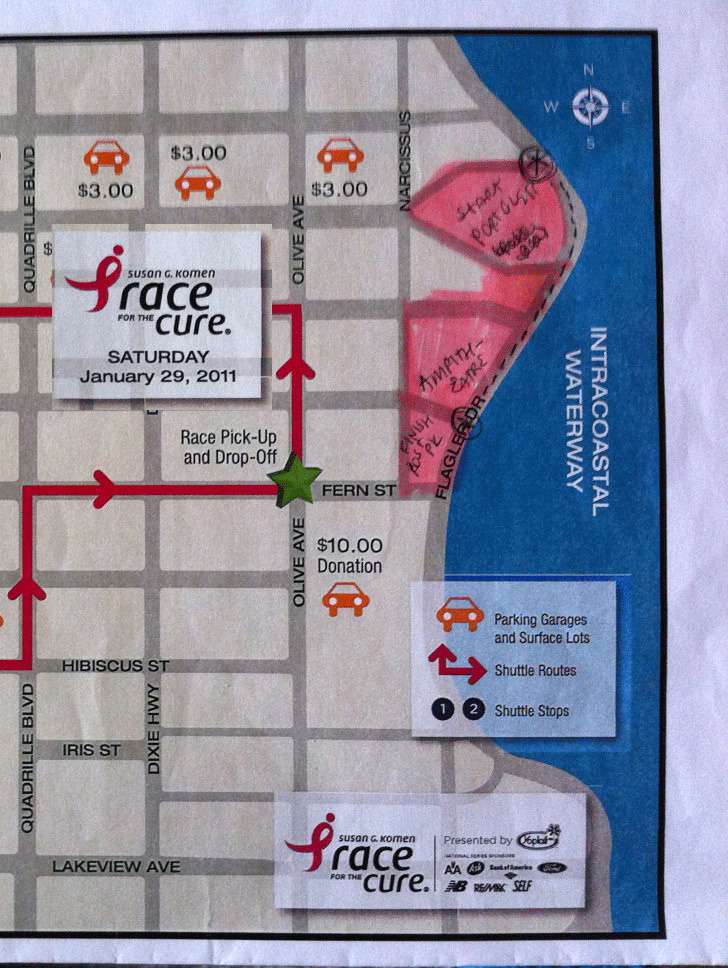

West Palm Beach Downtown Waterfront area
(N: Banyan, E: Flagler, S: Fern, W: Narcissus)

COMPONENTS

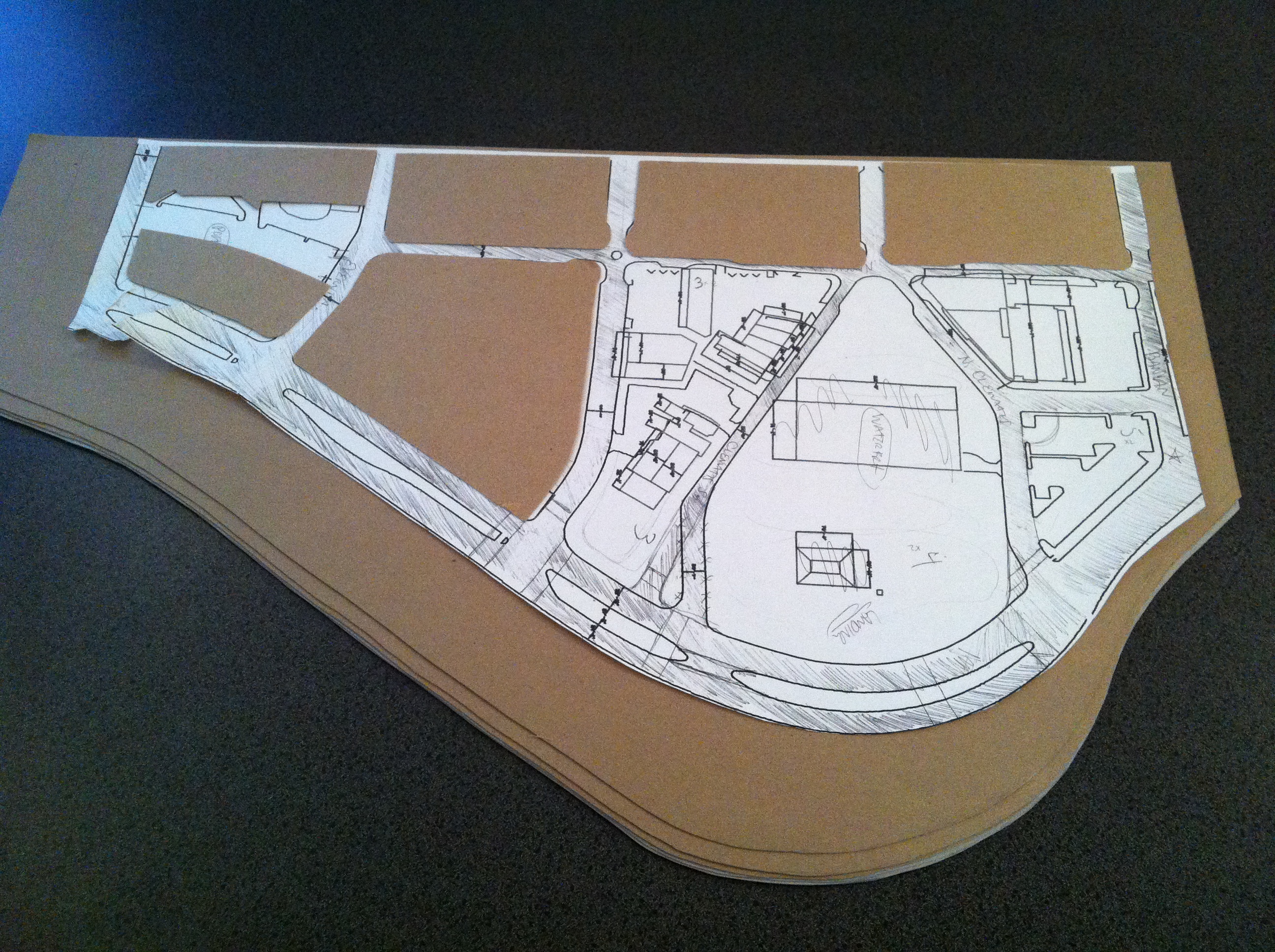

-chipboard for site contours, streetscape and sidewalks
-basswood for adjacent buildings surrounding the Race
-acrylic craft paper for the natural waters
-foam c for the Race tent configurations

PRELIMINARY

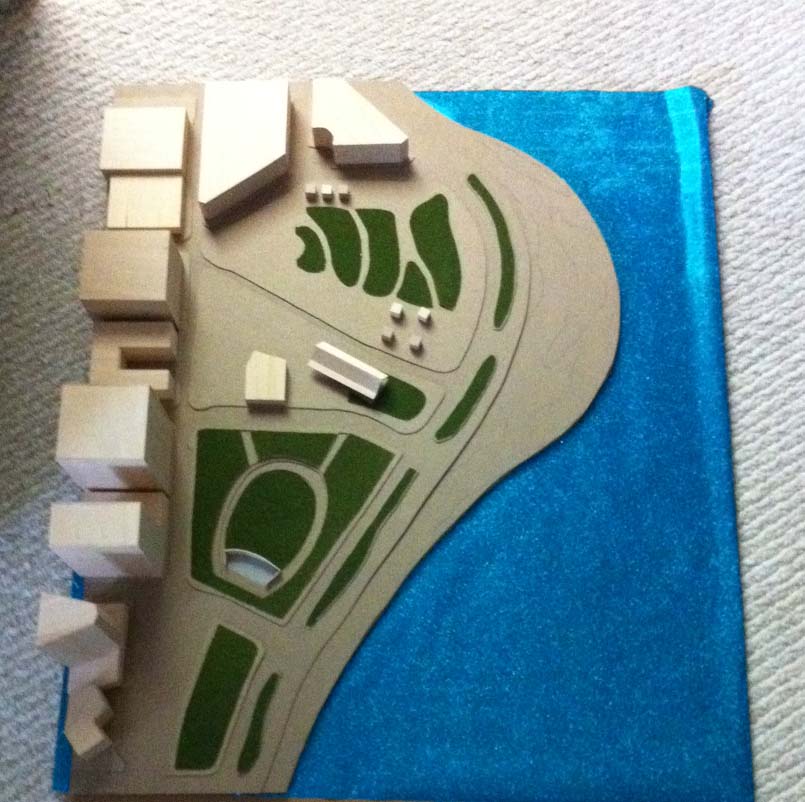

PHASE I: SITE CONTOURS

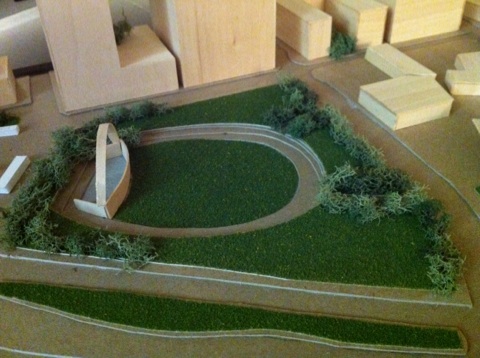

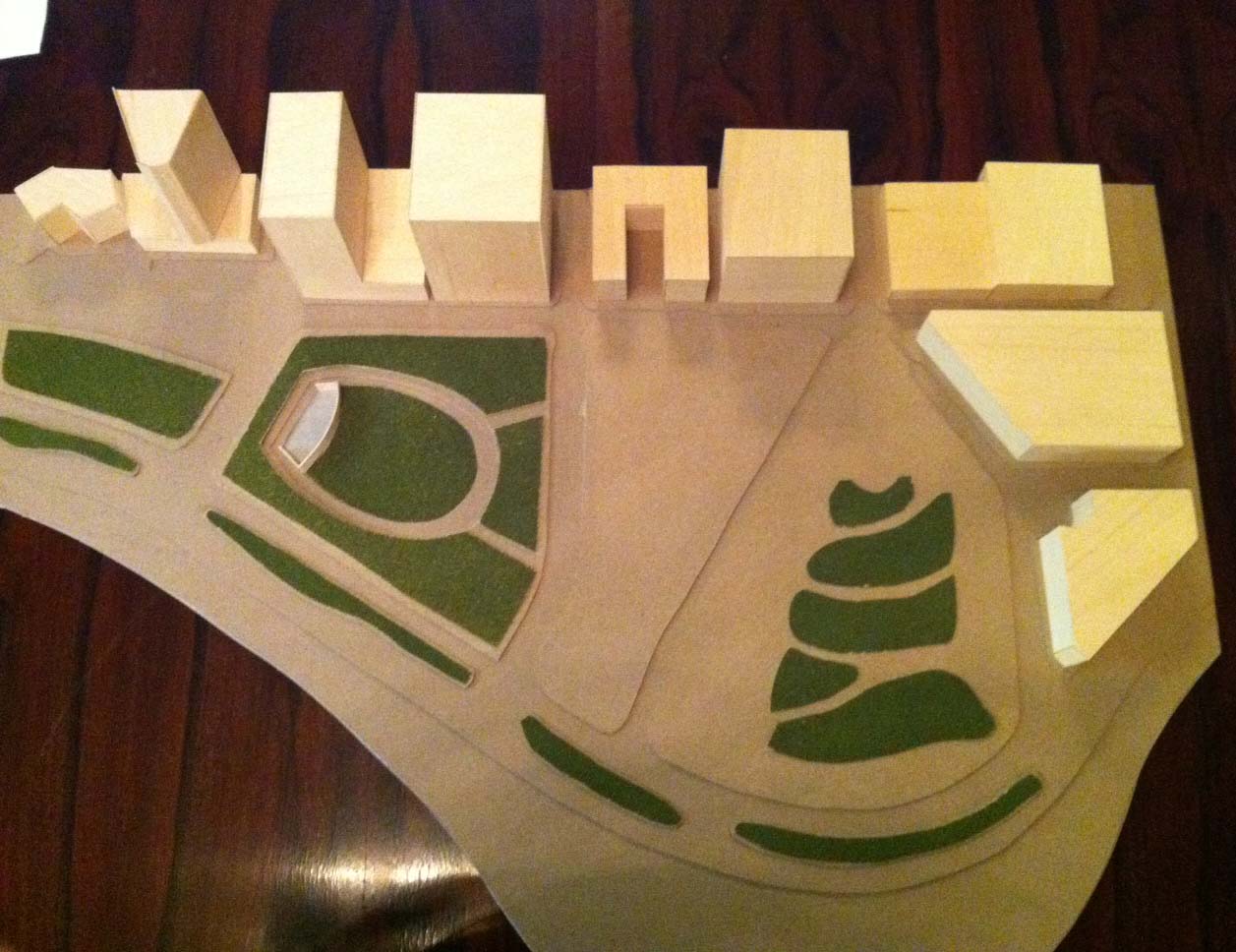

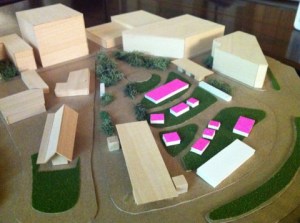

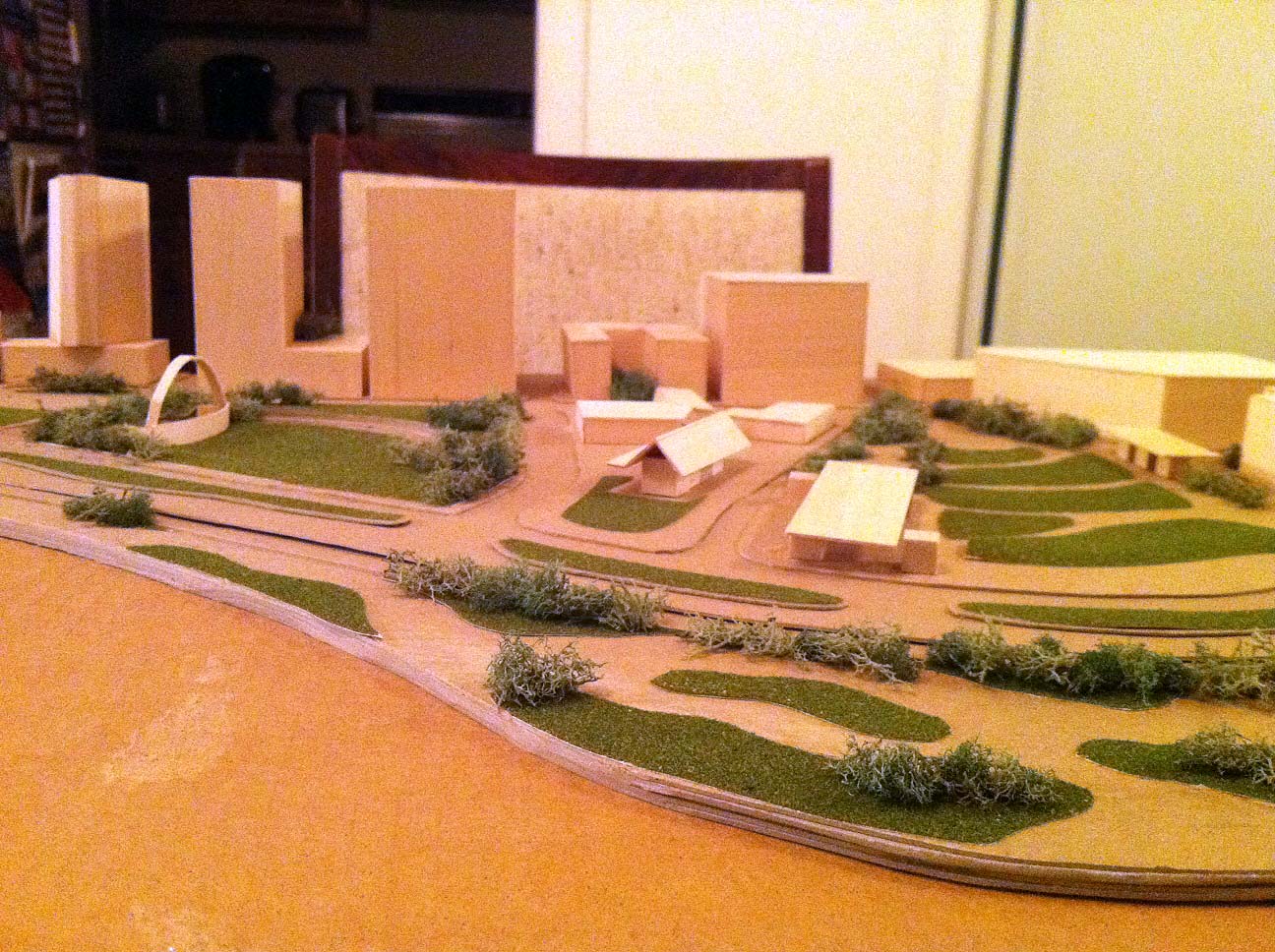

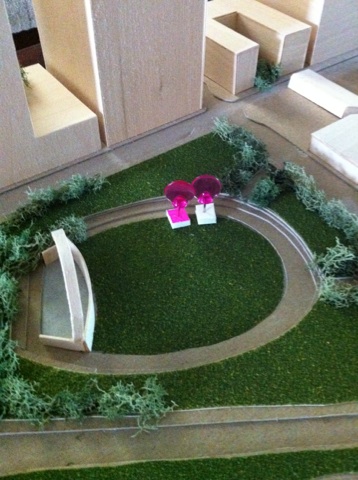

PHASE II: MASSING + LANDSCAPE PART I

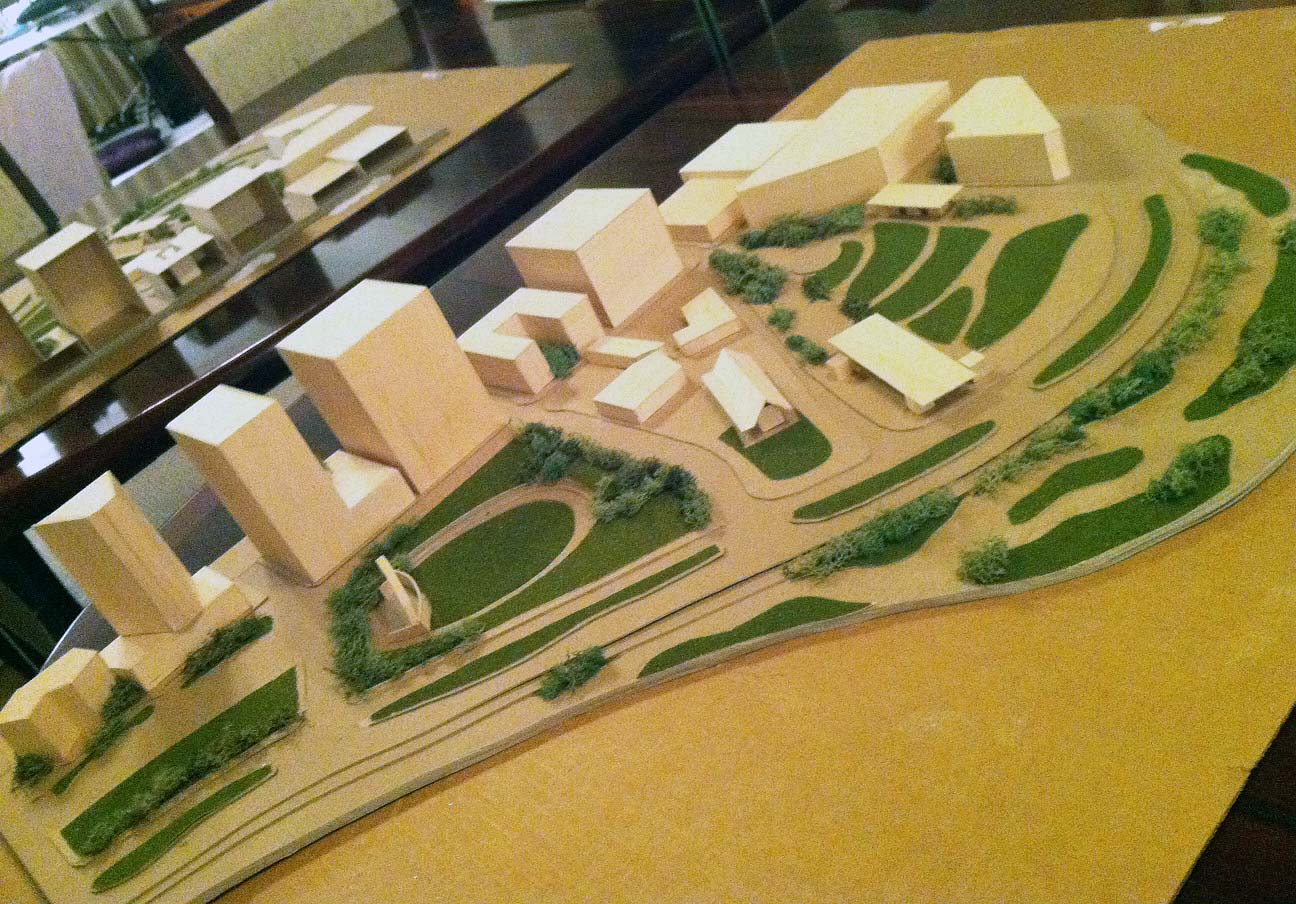

PHASE II: MASSING + LANDSCAPE PART II

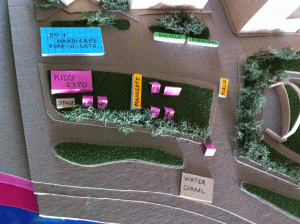

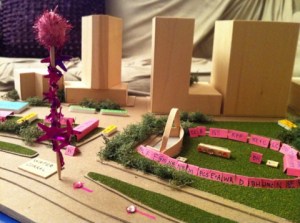

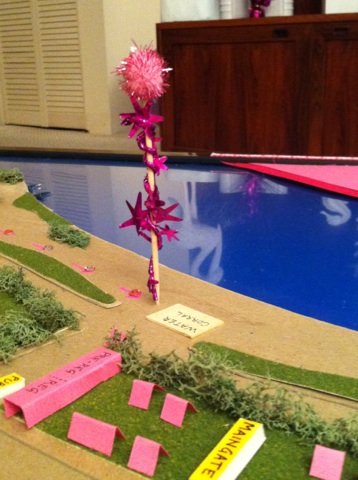

PHASE III:  COLOR STUDY FOR MOVABLE OBJECTS

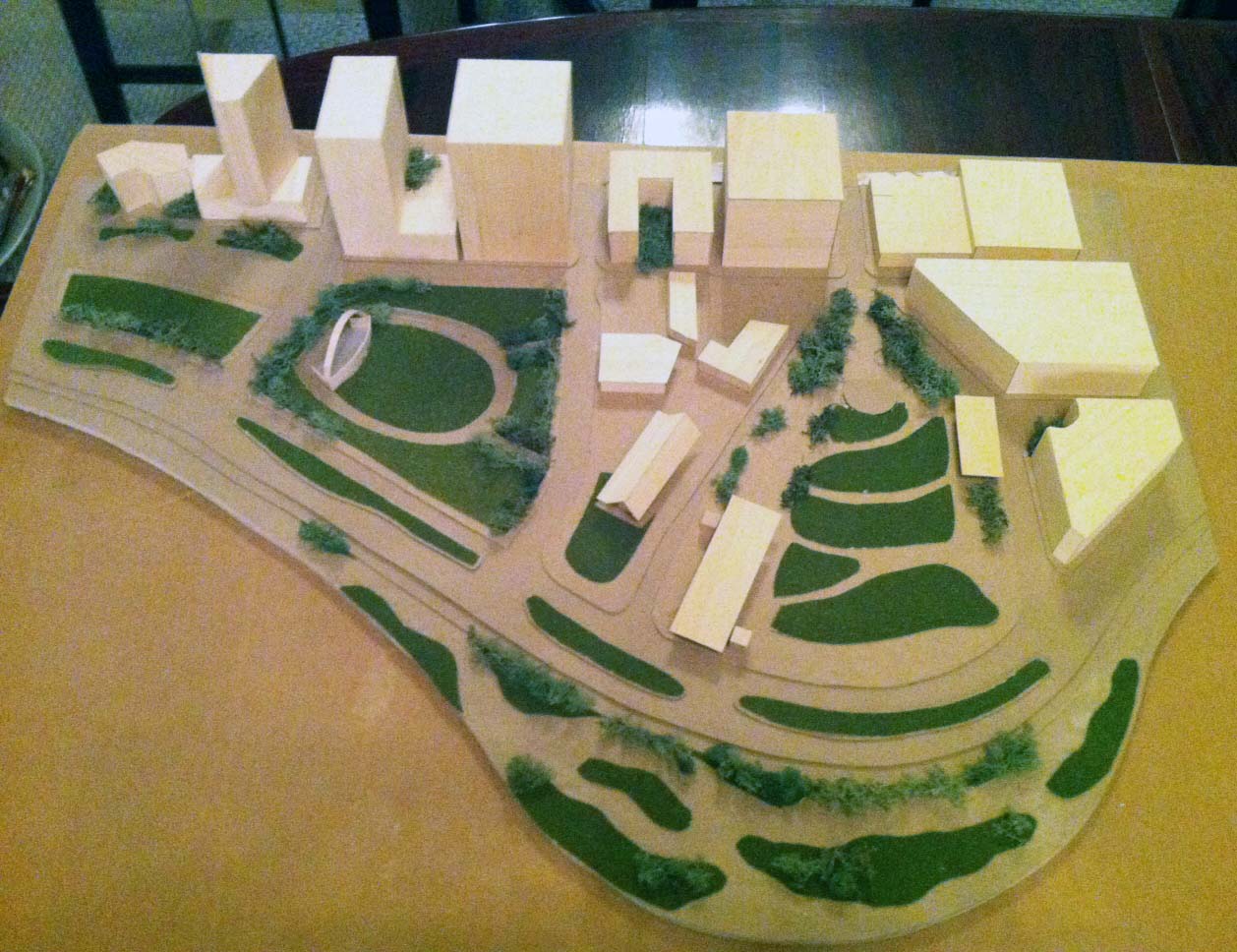

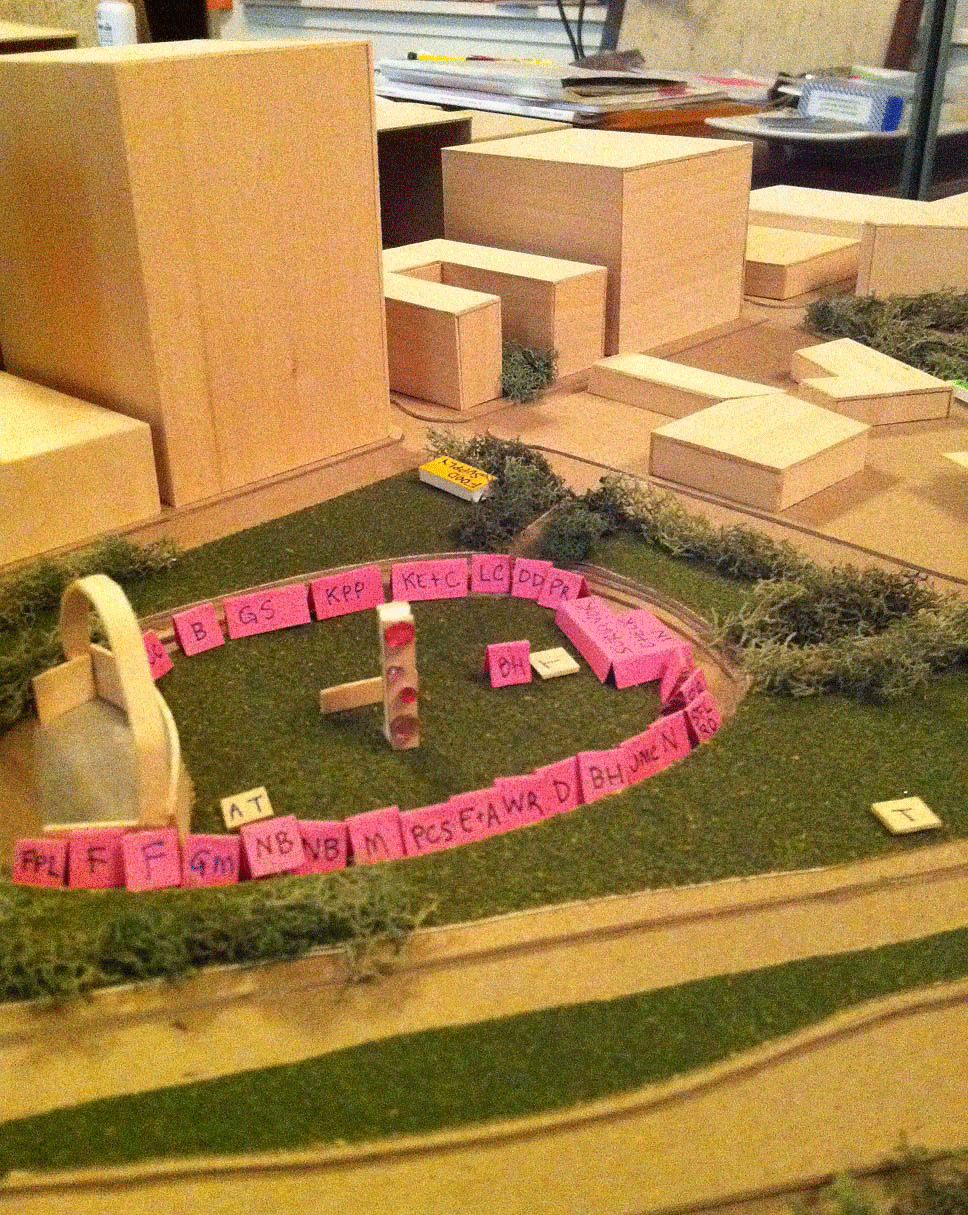

FINAL END

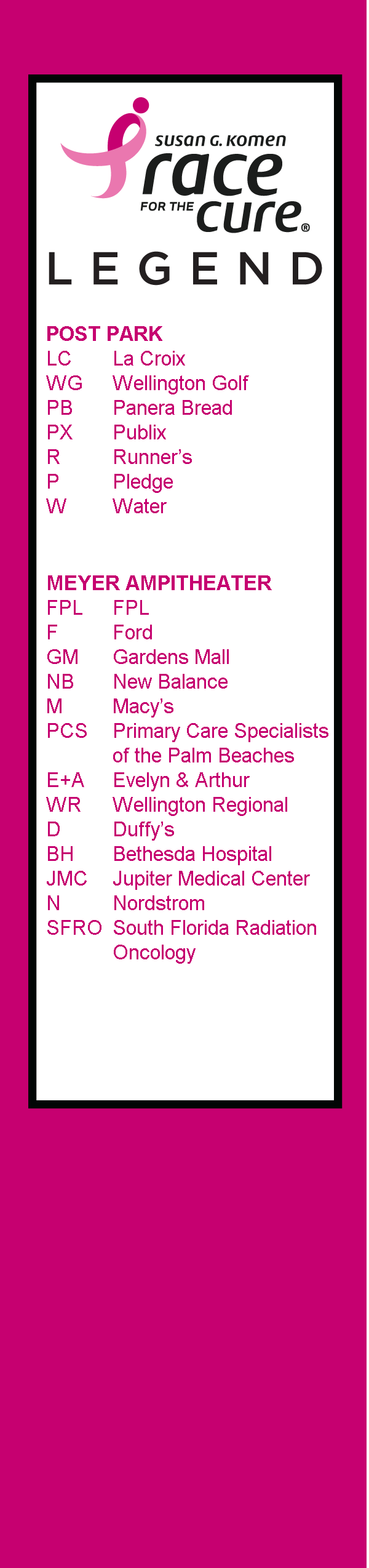

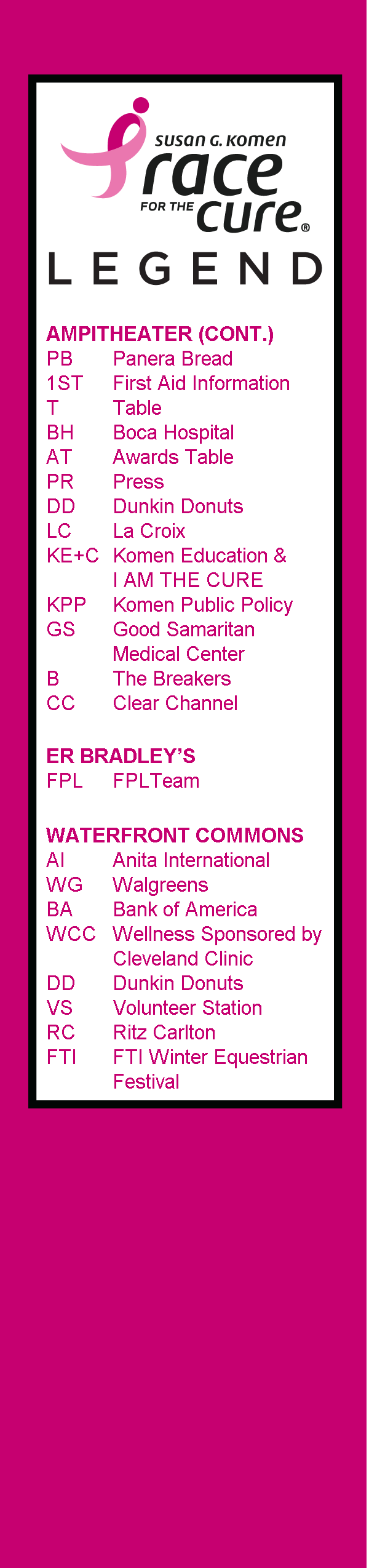

LEGEND + OTHER SIGNIFICANT DATA

CREATED BY NATHALIE J SIEGEL, AUGUST 2011

IN DEDICATION & MEMORY OF NATHALIE S GELLER
